HFS-310R hot foil stamping machine

Price: 3500 EUR

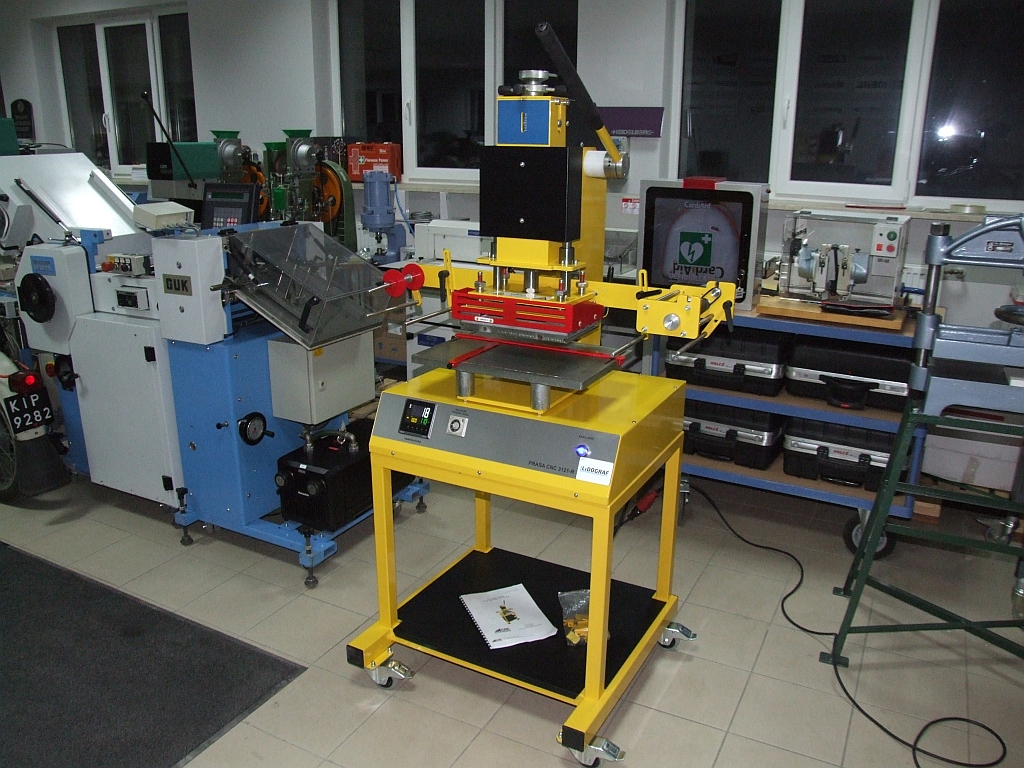

HFS-310R hot foil stamping machine
Brand new machine.

Description: HFS-310R is a manual knee press for hot foil stamping, paper and plastic stamping. The device is useful in every advertising agency and digital printing house. Manually operated pressure makes it independent of compressed air installations. The knee design of the press ensures repeatability of work and very high pressure of the matrix to the material.
The device has been equipped with automatic foil feeding, which significantly reduces the time of a single cycle, worktop, adjustment of the pressing depth, grinded plate with an accuracy of 0.01 mm, which significantly increases the quality of pressing with large dies, touch panel and modern OMRON control.

Specification:
MODEL: HFS-310R
The size of the heating plate: 310 x 210 mm
Work table surface area: 490 x 350 mm
Heating temperature adjustment: from the display to 300 ° C
Foil adjustment: Automatic Potentiometer adjustment
Heating plate pressure mechanism: Manual
Working gap (piston lifting height): 68 mm
Pile height: 40 mm
Press force: 3 T.
Power consumption: 850 W
Power supply: 230 V
Machine dimensions: 750 mm (W) x 530 (D) x 820 mm (H)
Machine weight: 130 kg
Instruction manual included.
