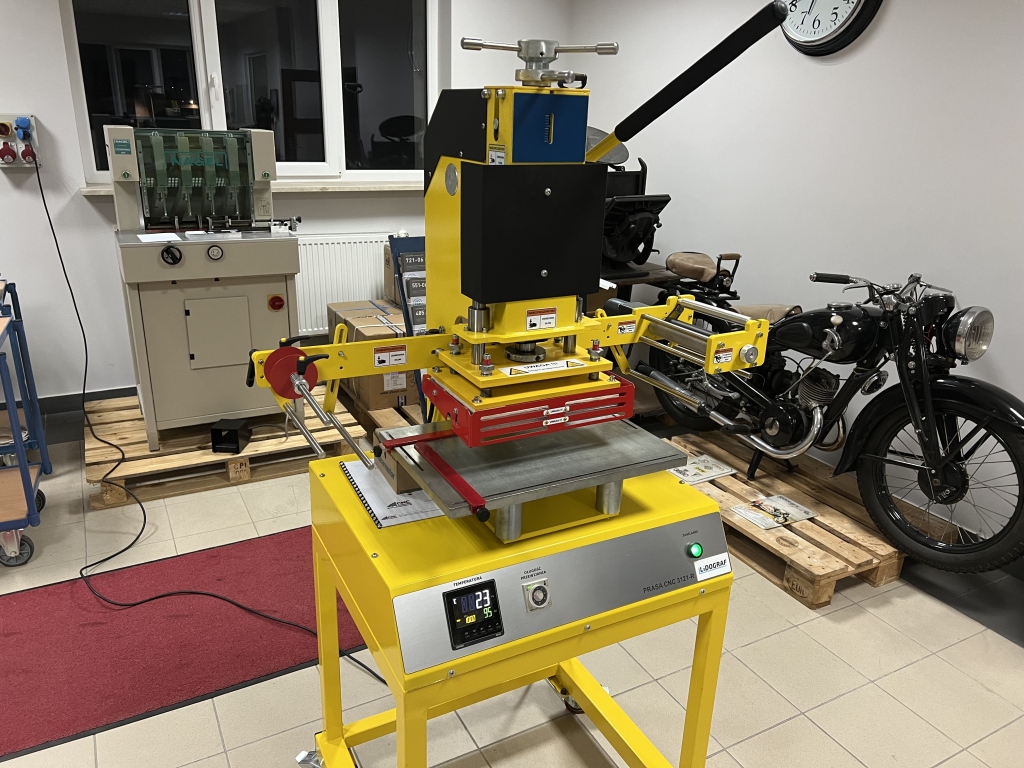

HFS 310R hot stamping press

Price: 2860 EUR

HFS 310R hot stamping press
Year of production 2021

Description: HFS 310R is a manual toggle press for gilding, embossing paper and plastics. A device useful in every advertising agency and digital printing house. The manually activated pressure makes it independent of the compressed air installation. The elbow design of the press ensures repeatability of work and very high pressure of the matrix on the material.
The device is equipped with an automatic foil feed, which significantly shortens the time of a single gilding cycle, a worktop, adjustable embossing depth, a heating plate polished with an accuracy of 0.01 mm, which significantly increases the quality of embossing with large dies, a touch panel and modern OMRON control.

Specification:
MODEL: HFS 310R
Heating plate size: 310 x 210 mm
Worktable area: 490 x 350 mm
Heating temperature adjustment: from the display to 300°C
Gilding foil adjustment: Automatic Potentiometer adjustment
Heating plate pressing mechanism: Manual
Working gap (piston lifting height): 68 mm
Height of the gilded stack: 40 mm
Press pressure force: 3 T
Power consumption: 850 W
Power supply: 230 V
Machine dimensions: 750 mm (W) x 530 (D) x 820 mm (H)
Machine weight: 130 kg
Instruction manual included.
