Hot stamping press HFS-450

Price: 7150 EUR

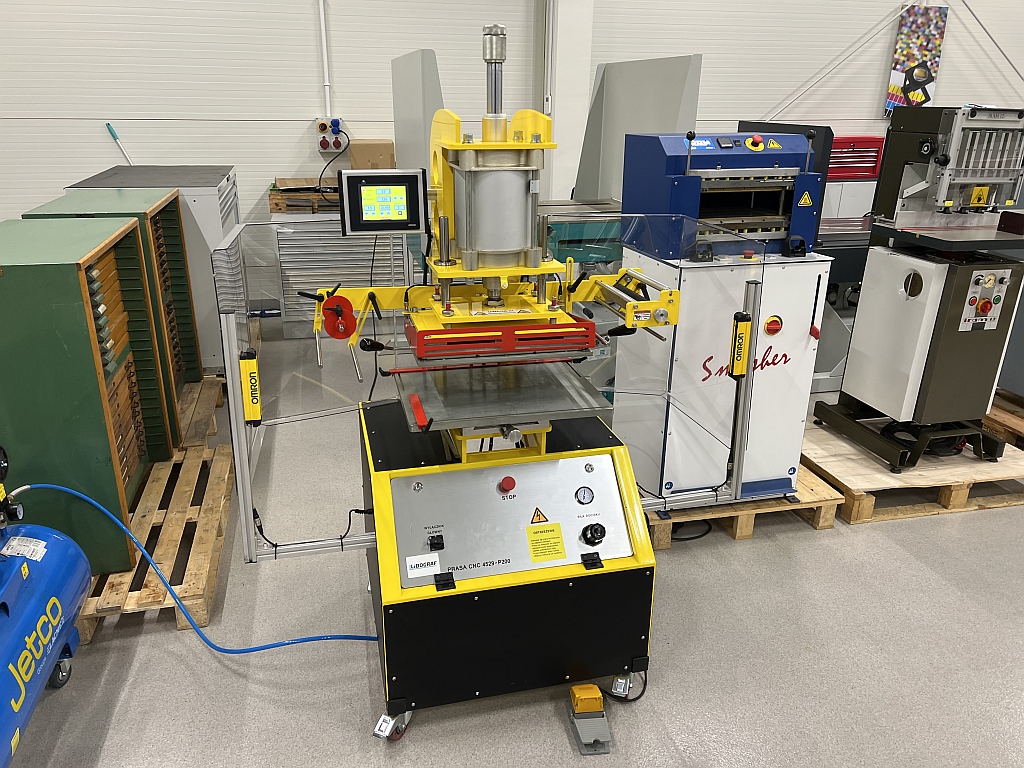

Hot stamping press HFS-450
The device is in very good condition, ready to work.
Year of production 2017.
Description:
HFS-450 Automatic/pneumatic cold and hot stamping machine. Rigid welded steel construction, pneumatic piston with smooth adjustment of the clamping force and automatic control system guarantee high quality and repeatability of performed works. The device has been equipped with an automatic foil advance, which significantly shortens the time of a single gilding cycle, a worktop, an adjustable depth of embossing, a hotplate ground with an accuracy of 0.01 mm, which significantly increases the quality of embossing with large dies, a touch panel and modern OMRON control.

Specification:
Heating plate size 450×290 mm
Work table area 450×550 mm
Heating temperature adjustment from the display up to 300°C
Adjustment of the heating time from the display
foil adjustment Automatic Adjustment from the display
Heating plate clamping mechanism Automatic, pneumatic
Working gap (piston lifting height) 88 mm
The height of the gilded pile is 80 mm
Piston diameter 200 mm
Automatic counter
Press force up to 3T
Supply air pressure 0.8 – 1.2 MPa
Power consumption 3000W
230V power supply
Machine dimensions 1170 mm (W) x 870 (D) x 1840 mm (H)
Machine weight 280 kg
User manual included.
The machine is additionally equipped with:
Frame for mounting engraved dies
Cross table for easier positioning of the die relative to the material
