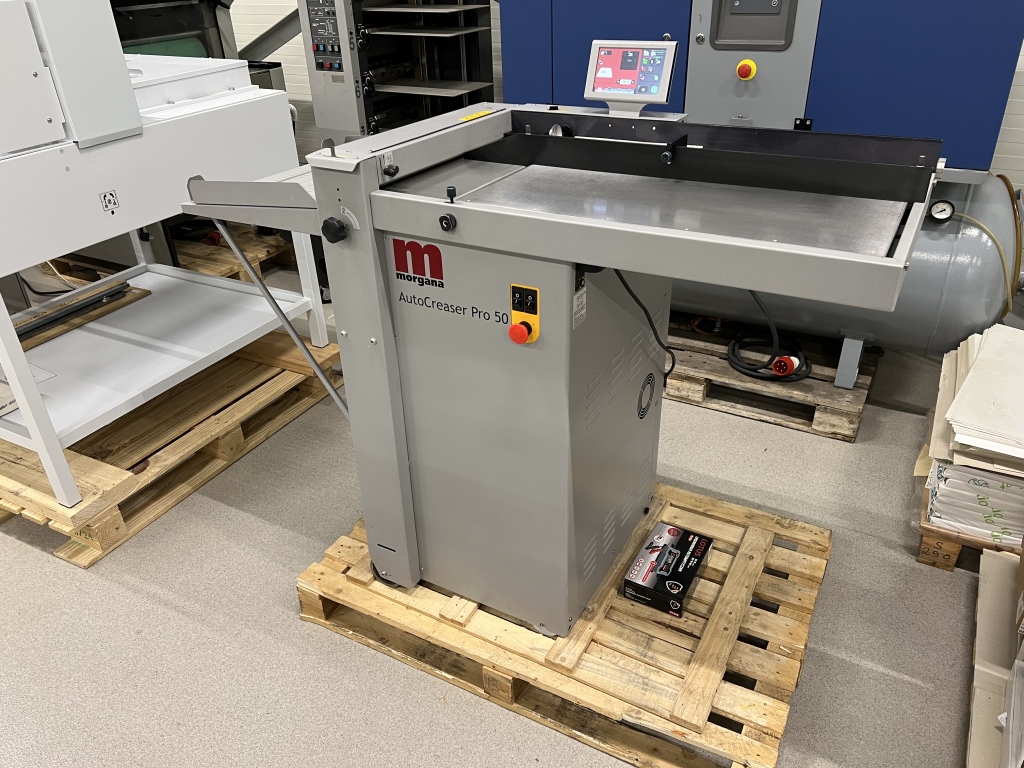

Morgana Auto Creaser PRO 50 Automatic Creaser

Price: 7500 EUR

Morgana Auto Creaser PRO 50 Automatic Creaser
The machine is fully operational and ready to use.
It is the most efficient creasing system on the market, with a robust construction.
Made in England.
Non-stop vacuum feeding with the ability to add material during operation.
Built-in compressor.
Instruction manual included.

Manufacturer’s description:

The MORGANA AUTOCREASER 50 PRO is one of the world’s most popular automatic creasers, manufactured by the British company Morgana Systems Ltd. The machine allows for strip creasing, line perforation, micro-perforation, and fragmentary perforation.

The 7″ color Smart Screen programmer allows for easy machine programming.
Working width up to 500 mm
Productivity up to 8,500 sheets/h (A4), 11,000 sheets/h (A5)
Paper feeding via a vacuum cylinder
Programmable up to 16 creases in a single pass, unlimited number of programs
Creasing paper weights from 0.11-0.4 mm (approx. 80-400 gsm)
Option to install additional perforating discs – 20, 28, 56, or 90 notches

Technical parameters:
Maximum format (width/length): 500 x 700 mm
Minimum format: 140 x 210 mm
Maximum grammage: 0.4 mm (approx. 400 gsm) including laminated material
Minimum grammage: 0.11 mm
Maximum number of creases in one pass: 16
Number of programs: alphanumeric, unlimited
Productivity: 8,500 sheets/h (A4-1 creasing), 11,000 sheets/h (A5-1 creasing)
Perforating disc: 1 pc. standard
Min. creasing distance from the front edge: 2.5 mm
Min. creasing distance from the rear edge: 35 mm
Minimum distance between creases: 1 mm
Machine dimensions (L x W x H): 1,500 x 682 x 1,224 mm
Net weight: 156 kg
Power supply: 230V, 50 Hz
