Pneumatic hot stamping machine HFS 4529

Price: 5500 EUR

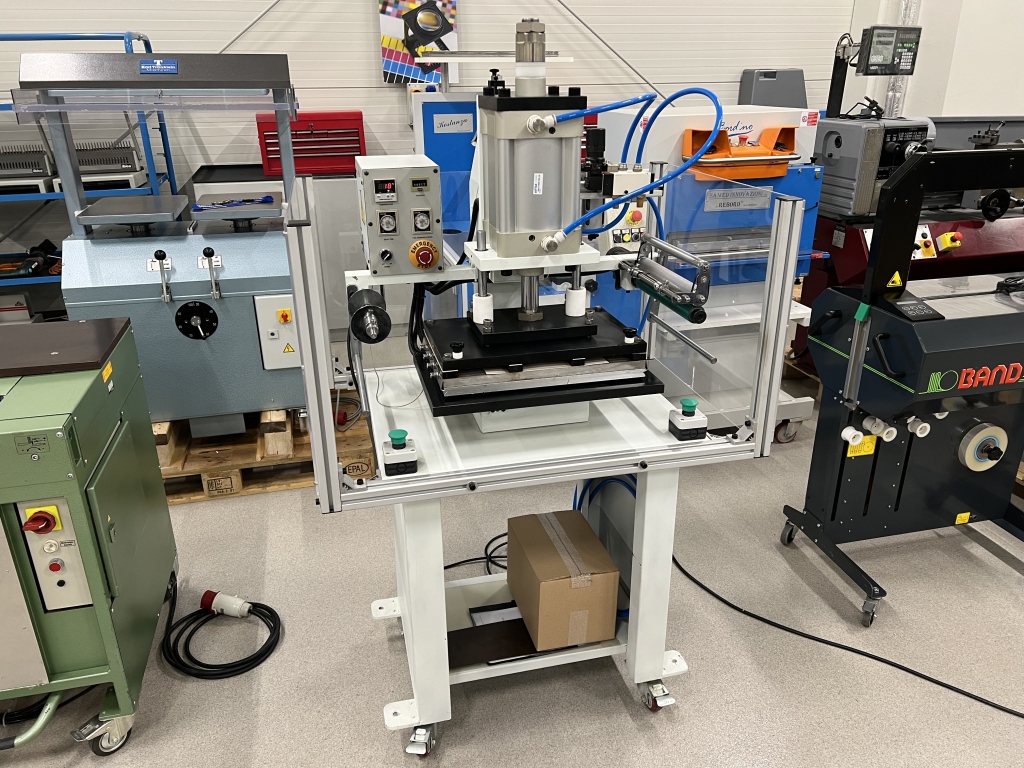

Pneumatic hot stamping machine HFS 4529
Device in very good condition, ready to work.

Description:
HFS 4529 Automatic/pneumatic hot stamping and hot stamping machine. Rigid cast iron construction, pneumatic piston with smooth adjustment of the pressing force and automatic control guarantee high quality and repeatability of the work performed. The device is equipped with automatic foil feed which significantly shortens the time of a single gilding cycle, worktop, embossing depth adjustment, heating plate ground with an accuracy of 0.01 mm which significantly increases the quality of embossing with large dies.

Specification:
Heating plate size 450×290 mm
Honeycomb heating plate with locks for quick attachment of dies.
Heating temperature control from the display up to 280°C
Heating time control
Gilding foil control Automatic
Heating plate pressure mechanism Automatic, pneumatic
Automatic counter
Press force up to 3T
Supply air pressure 0.8 – 1.2 MPa
Power consumption 3000 W
Power supply 230 V
Machine weight 350 kg
Additional protective casings.
