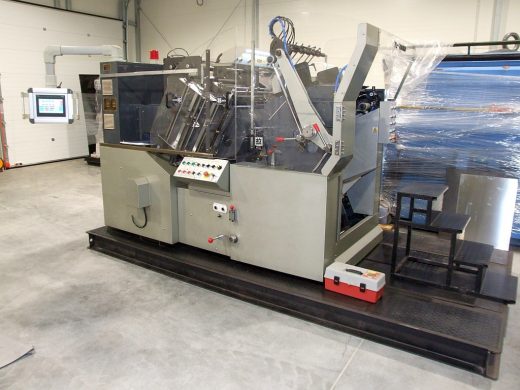

Automatic die-cutting and embosing machine TL-780RD

Automatic die-cutting and embosing machine TL-780RD

Price: 55000 EUR

Automatic die-cutting and embosing machine TL-780RD
The machine is built on a die-cutting basis with an automatic feeder, mounted on a common frame,
The machine was built on the basis of the legendary Sargolia machine.
Very quick machine preparation, incomparable with flat diecutting machines.

Technical data:
Max sheet format 780x560mm
Min format sheet 200x300mm
Max. Stack height 700mm
Material weight 100-2000g / m2
Max efficiency 2800 sheets / h
Power consumption 15kW + compressed air
Weight 6000kg
Transfer foil 1-560mm
Working temperature 1-150’C
380V power supply
Dimensions of the machine: 3850x1920x2200mm

Equipment:
– pneumatic clutch and brake
– electric quick assembly frame
– control panel with a touch PLC programmer in Polish/English
– four independent foil movements, controlled by stepper motors
– broken film sensor or no sheet feed sensor
– 4 sections of the heating plate, saving energy
– automatic imprsion force adjustment
– central lubrication
– Honey Comb-plate with zips for quick matrices assembly
– additional safety covers
– tools for handling and instructions, CE declaration
– built-in compressor
– hard sheet for pressure
The machine is available „on the spot”
We provide assembly and training (individual valuation)
12 months warranty.
The machine is brand new.
