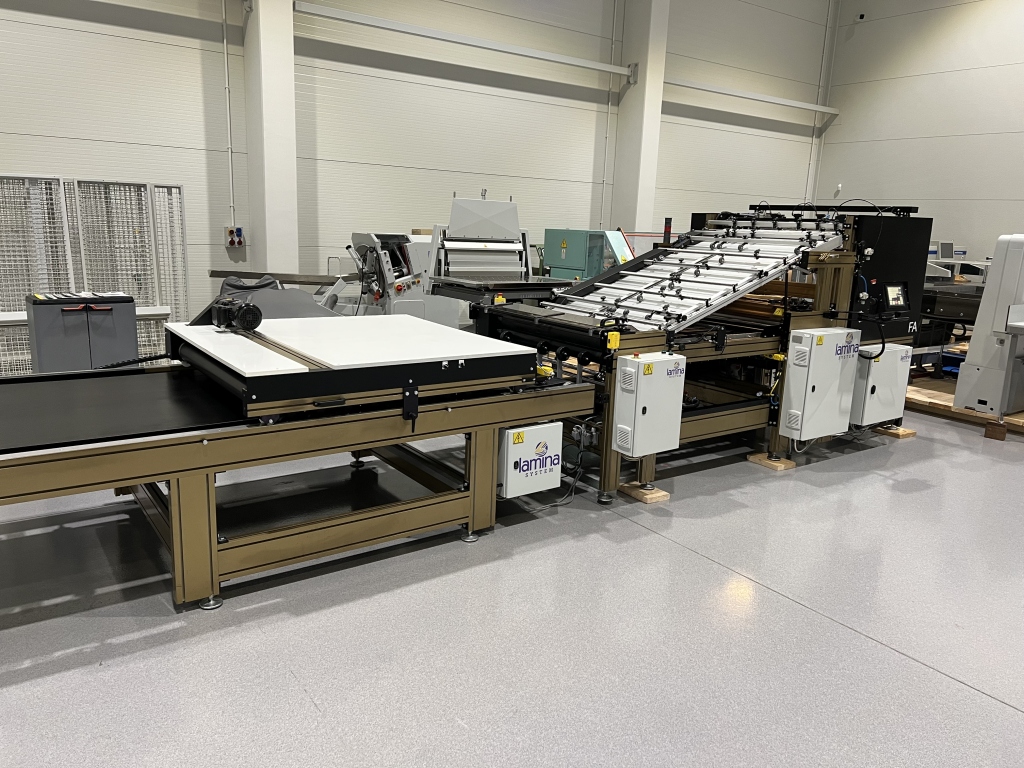

Lamina 1110 FA Fully automatic sheet-to-sheet laminator

Price: 55000 EUR

Lamina 1110 FA Fully automatic Sheet to sheet laminator
The machine is fully operational and ready for production, in perfect condition.
Year of production 2017.
The machine has an automatic sheet and cardboard feeder, glue pump, built-in vacuum, pressure module and receiving table.
Control from a touch computer.

Description:
Lamina 1110 FA is a very precise, fully automatic sheet laminating (gluing) machine. The machine is designed for materials with dimensions of up to 1100 x 1050 mm. Thanks to the compact design of the machine, the set-up time is short and the operation is uncomplicated. The machine’s construction is based on a very durable, rigid frame made of extruded aluminum structural profiles. Thanks to this design, we get an attractive machine with durable surfaces, the coating of which will remain in good condition for many years. Any of the options can be added at any time

Technical data:
Working width max/min: 1100 mm / 200 mm
Sheet length max/min: 1050 mm / 350 mm

Feeder capacity Upper feeder: 500 mm
Lower feeder: 800 mm
Upper sheet 130 to 450 g/m2
Lower sheet From 250 g/m2 to 10 mm, corrugated from 0.6 to 10 mm
Accuracy Up to 0.2 mm
Total installed power 6.0 kW
Power supply 380V
Weight 4500 kg
