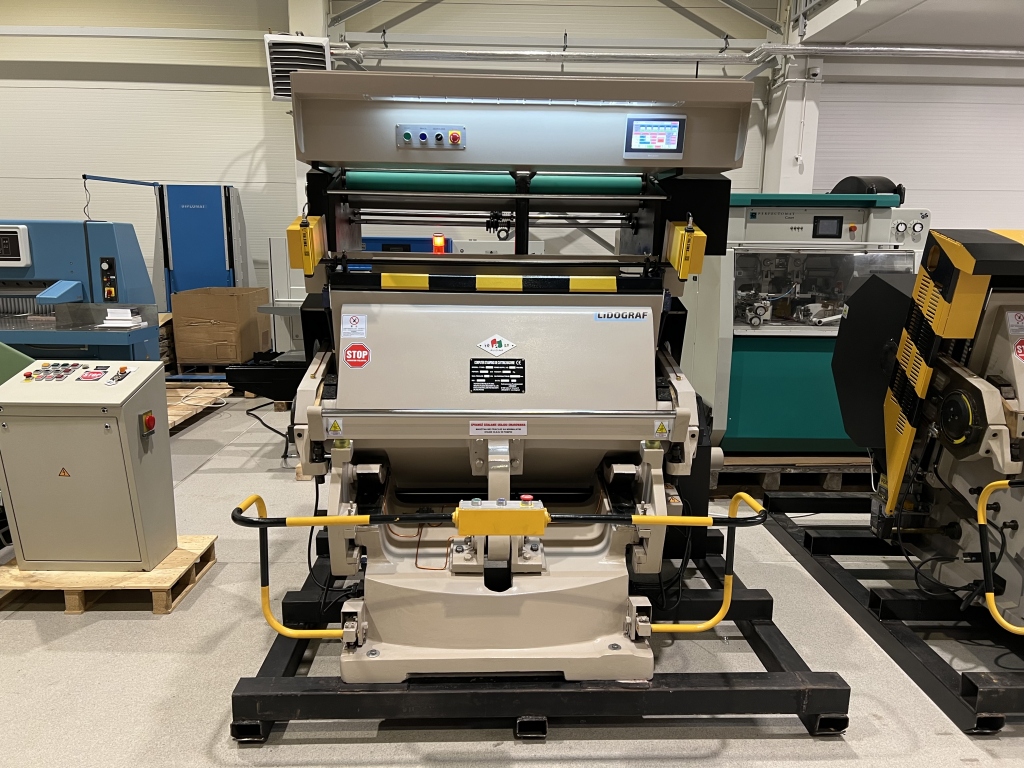

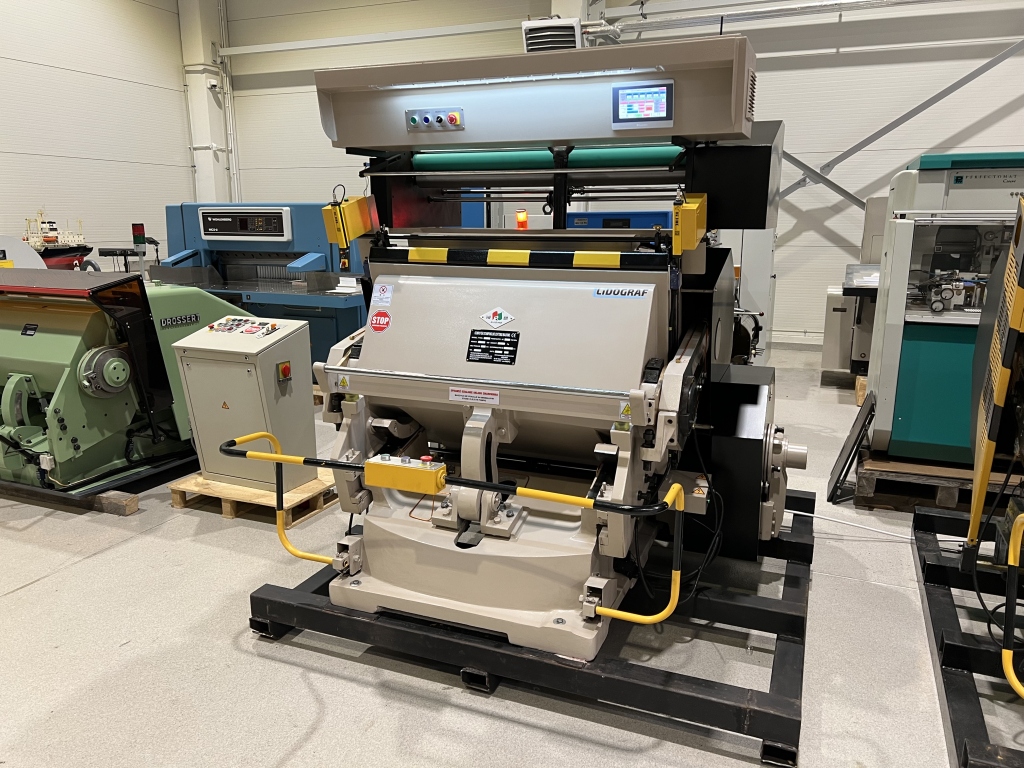

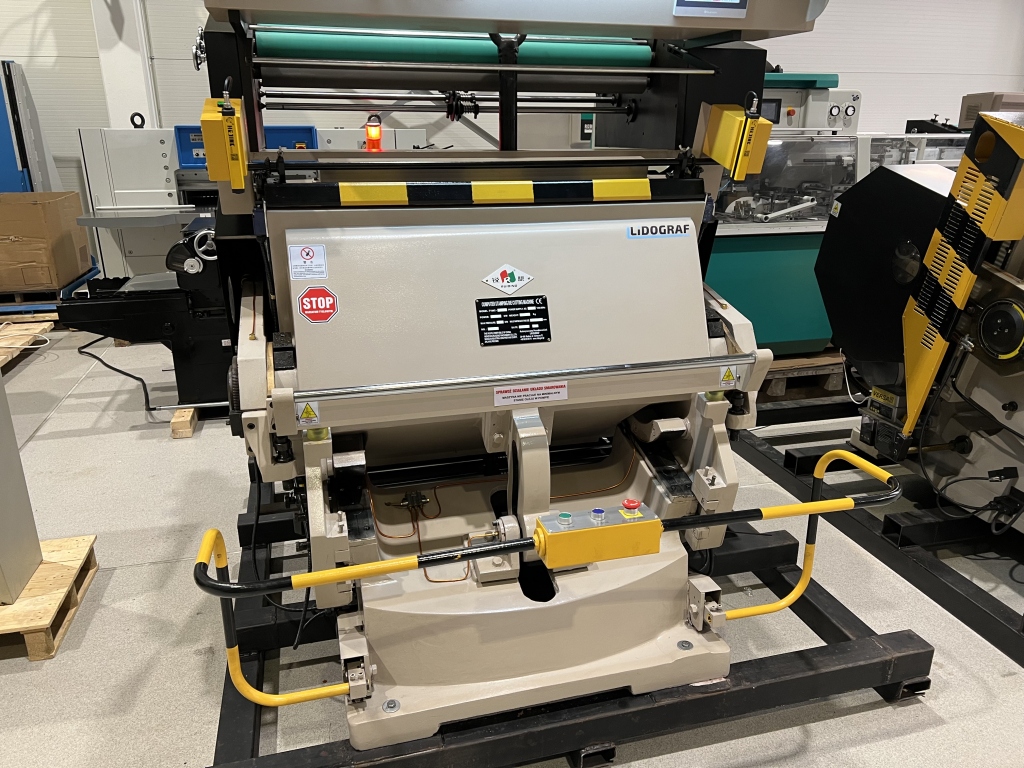

Die cutting machine TYMC-1200 with hot stamping

Price: 23800 EUR

Die cutting machine TYMC-1200 with hot stamping

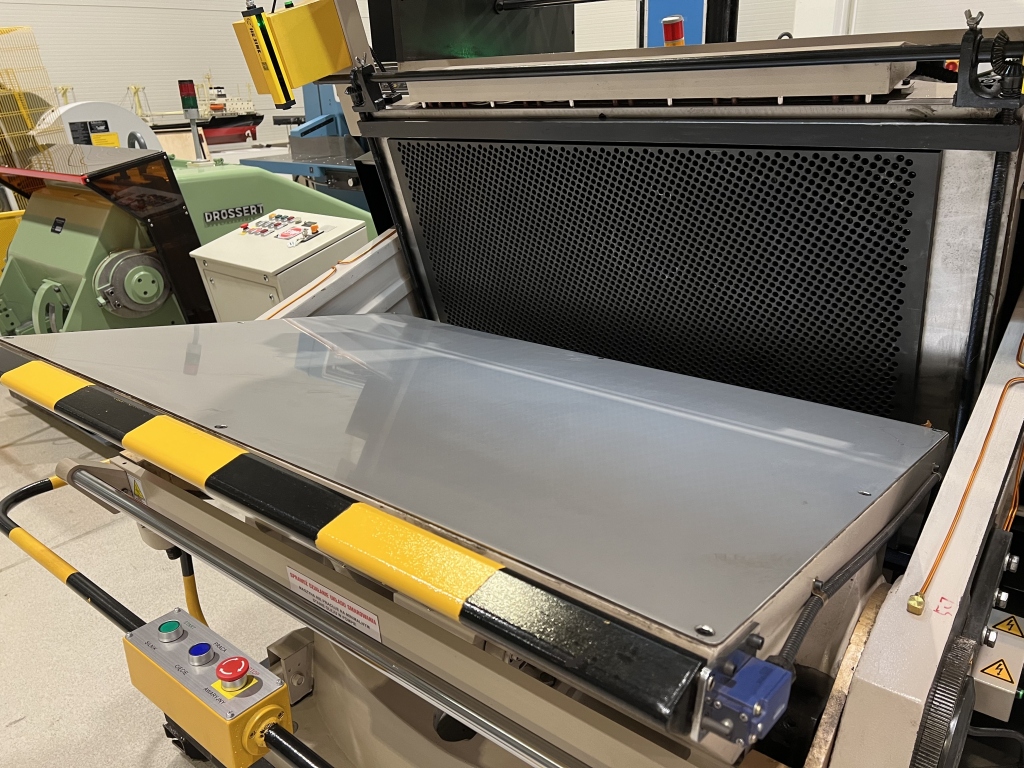

The latest version, with a „honeycomb” plate with locks.
The machine is designed for hot knife die-cutting and standard die-cutting without the need to remove the heating plate.
Format:
die cutting 1230x850mm
hot stamping 1100x780mm
Weight 6000 kg
Operating speed 23 cycles/min
Foil travel 1-820mm
Operating temperature 1-150’C
Power supply 380V
Equipment:
– electromagnetic clutch and brake
– quick assembly frame

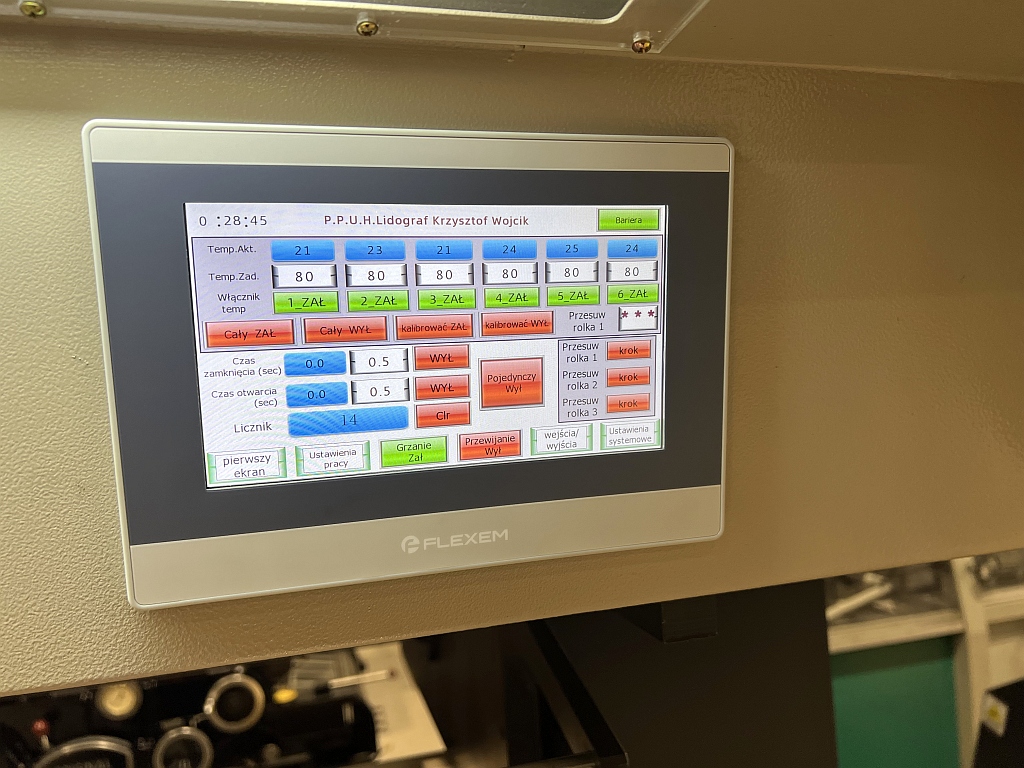

– control panel with a touch PLC programmer
– three independent foil pulling systems, controlled by stepper motors
– 3 operating modes: continuous, time delay, manual
– 6 heating plate sections, energy saving

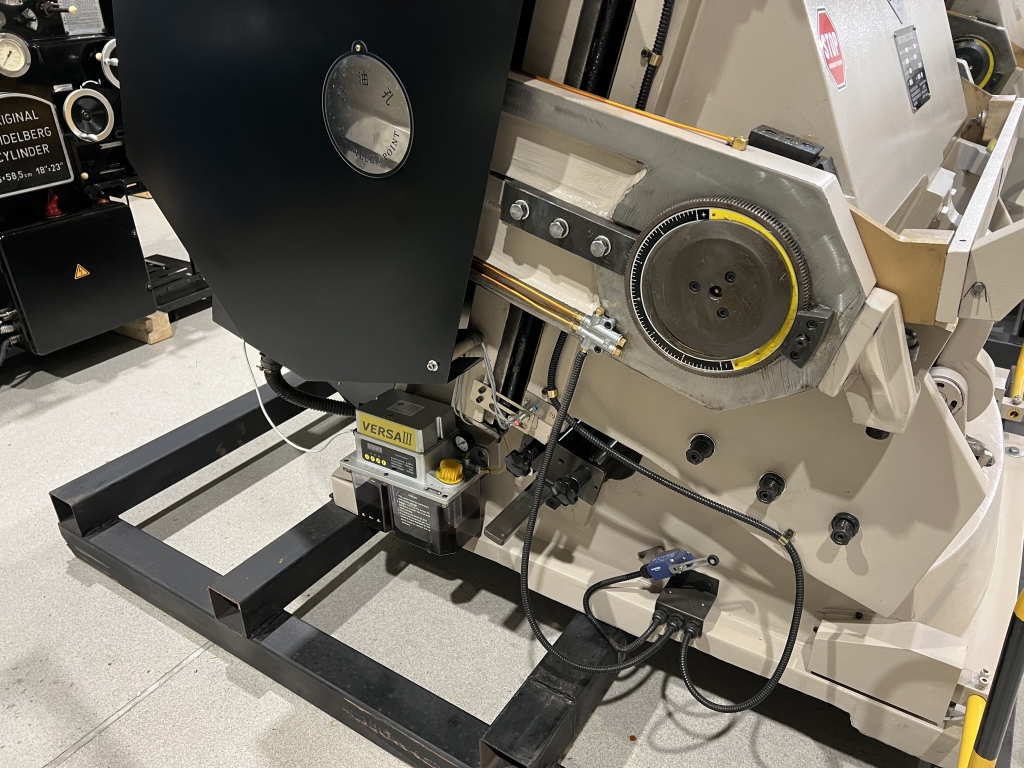

– central lubrication
– additional safety covers
– photocells
– operating tools and instructions, CE declaration
– sheet for pressure
Machine available immediately
12-month warranty.
