Fetzel TLM 500 V4 Laminating Machine

Price: 15000 EUR

Fetzel TLM 500 V4 Laminating Machine
The machine is 100% functional and in perfect condition.
This is an advanced, high-performance automated system, well-suited for commercial lamination services.
Manufactured in Austria.

Technical specifications:
Max. sheet size: 520 mm x 720 mm
Min. sheet size: 200 mm x 290 mm
Min. paper weight: 120 gsm
Max. paper weight: 400 gsm
Operating temperature: 80–130°C
Max. operating speed: 35 m/min
Feeder stack height: 600 mm
Weight: 700 kg
Power supply: 380 V
Installed power: 7 kW
Requires an additional 6-bar air supply.

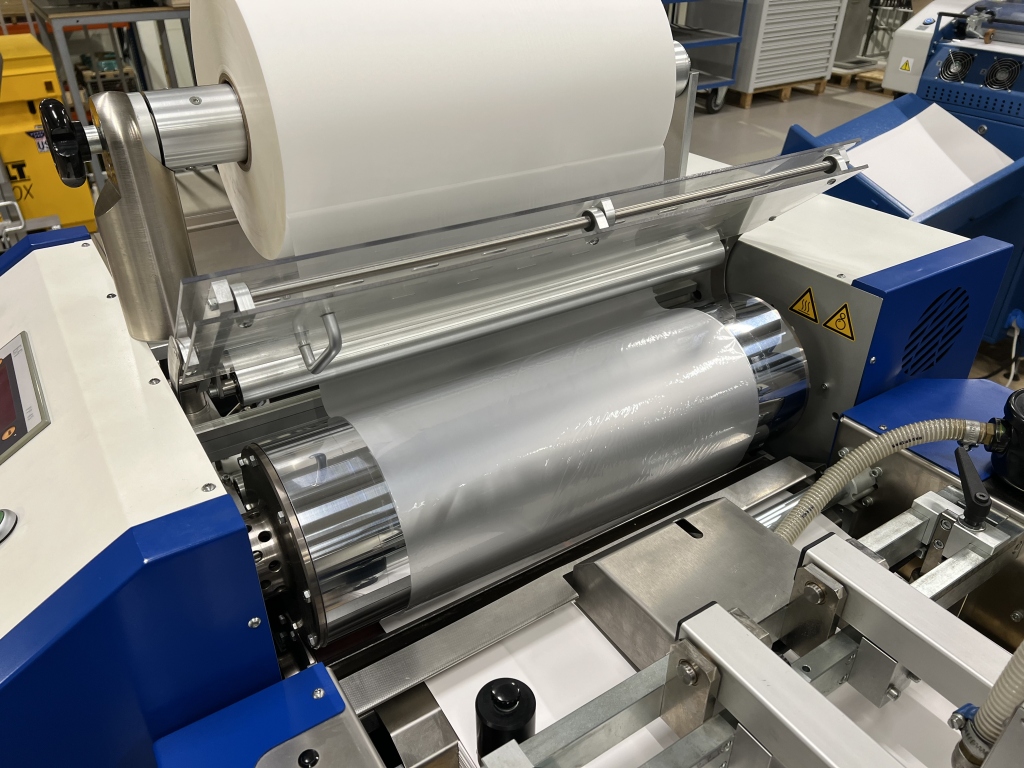

Features a large-diameter, chrome-plated steel cylinder that ensures a stable temperature.
Equipped with pneumatic pressure, sheet separation, and an automatic high-pile feeder.
Sheet feeding accuracy: ±2.0 mm.
The feeder unit can be moved aside, providing excellent access to the cylinders.
Includes an expanding shaft for film rolls, mounted on a swing-out arm.

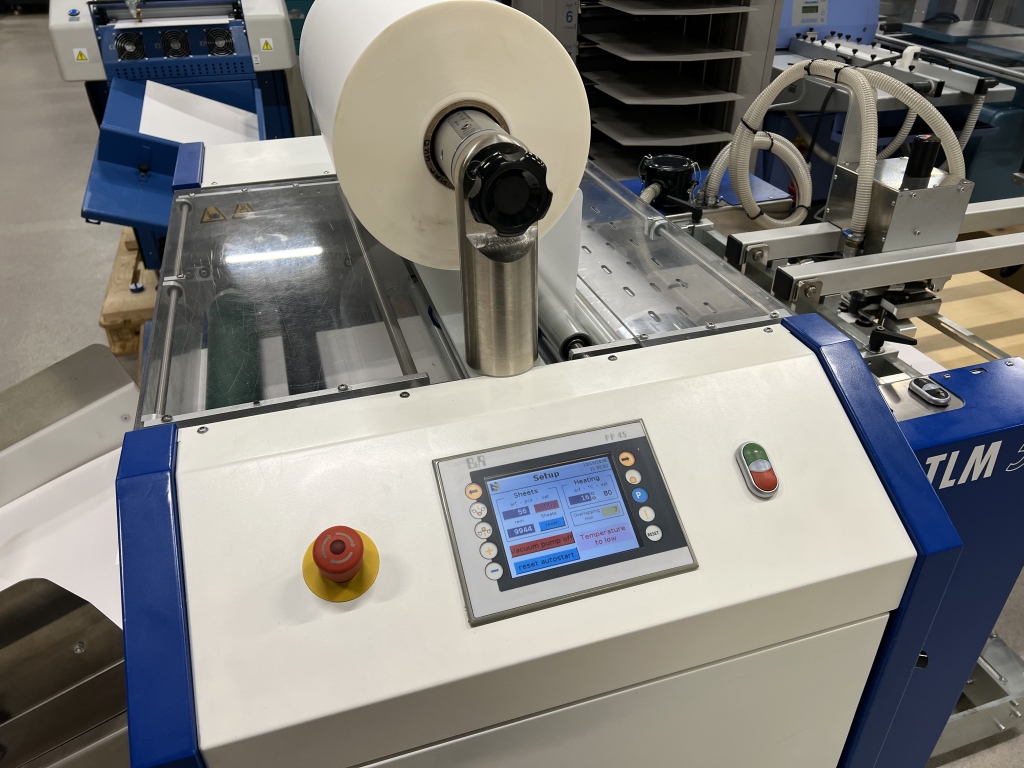

Features a color touchscreen control panel for easy operation.
Includes a sheet-straightening module.
