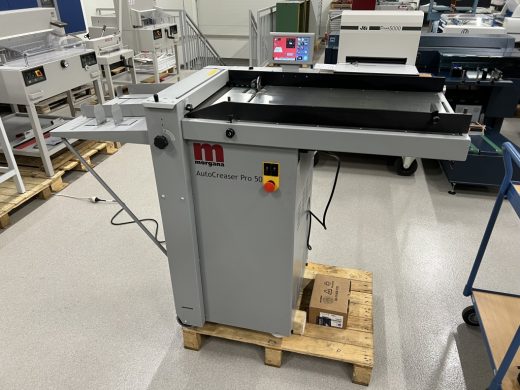

Morgana Auto Creaser PRO 50 automatic creasing machine

Price: 7600 EUR

Morgana Auto Creaser PRO 50 automatic creasing machine
The device is fully functional and ready to work.
It is the most efficient creasing system on the market, solid construction.
Production: England.
Vacuum feeding, non-stop, with the option of adding material during operation.
Built-in compressor
The set includes an instruction manual.

Manufacturer’s description:

MORGANA AUTOCREASER 50 PRO is one of the most popular automatic creasing machines in the world, produced by the English company Morgana Systems Ltd. The machine enables strip creasing, line perforation, micropefroation and fragmentary perforation.

The 7” color Smart Screen programmer enables very easy programming of the machine
Working width up to 500 mm
Capacity up to 8,500 sheets/h (A4), 11,000 sheets/h (A5)
Paper feeding using a vacuum cylinder
Possibility to program up to 16 bigs in one paper pass, unlimited number of programs
Enables creasing of paper with a weight of 0.11-0.4 mm (approx. 80-400 g/m2)
Possibility to install additional perforating discs – 20, 28, 56 or 90 teeth

Technical parameters:
Maximum format (width/length) 500 x 700 mm
Minimum format 140 x 210 mm
Maximum grammage 0.4 mm (approx. 400 gsm) including laminated material
Minimum grammage 0.11 mm
Maximum number of bigs in one pass 16
Number of alphanumeric programs, unlimited
Productivity 8,500 sheets/h (A4-1 large), 11,000 sheets/h (A5-1 large)
Perforating disc 1 pc. standard
Min. distance of the hook from the front edge 2.5 mm
Min. distance of the hook from the rear edge 35 mm
Minimum distance between creases 1 mm
Machine dimensions (L x W x H) 1500 x 682 x 1224 mm
Net weight 156 kg
Power supply 230V, 50 Hz
