Morgana Plockmatic BM 2000S Digital Booklet-Making System

Price: 11000 EUR

Morgana Plockmatic BM 2000S Digital Booklet-Making System
The machine is in full working order and ready for production.

A professional, automated booklet-making system from Morgana (part of the Plockmatic Group), designed for medium- to high-volume digital and offset print finishing environments.

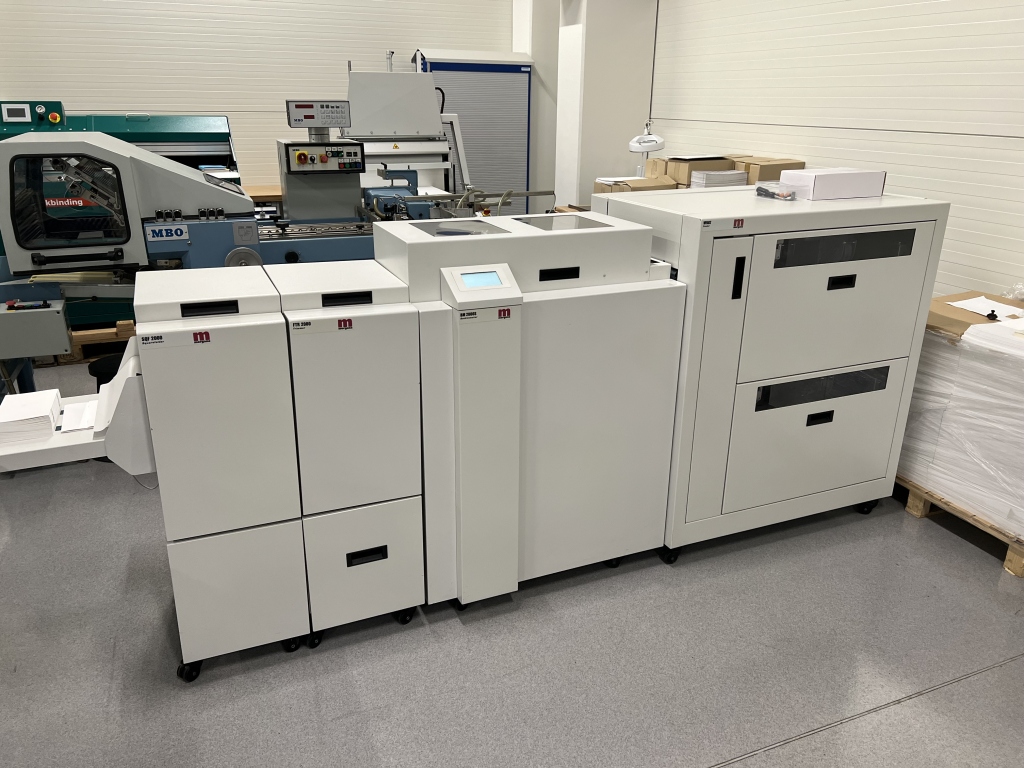

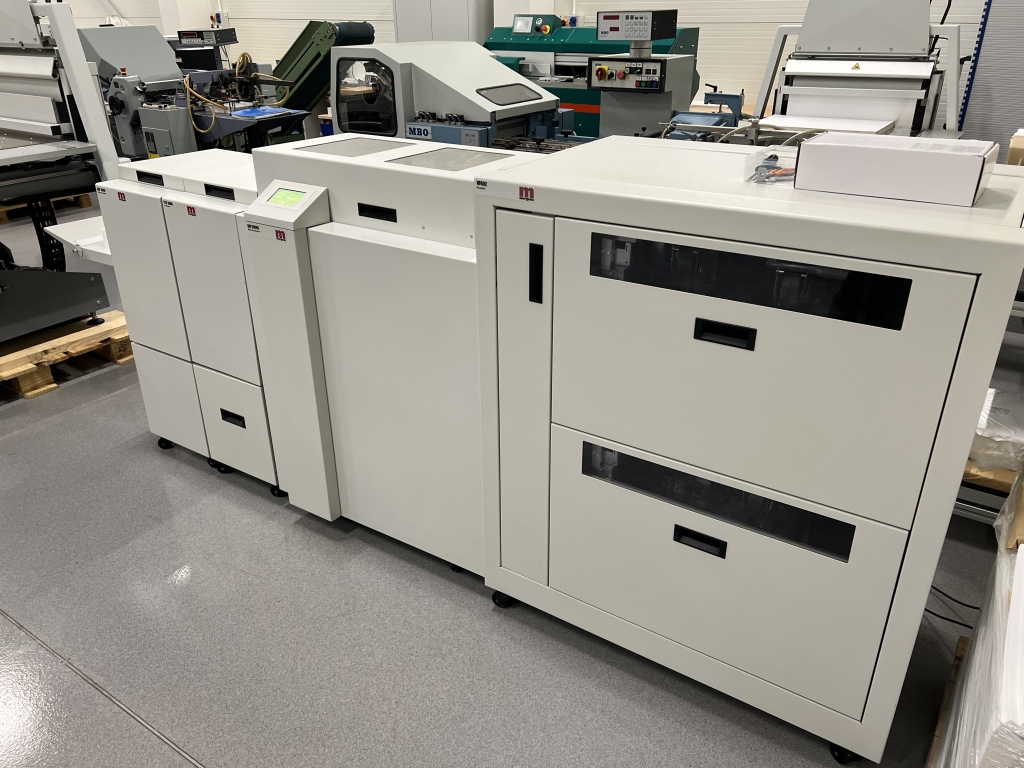

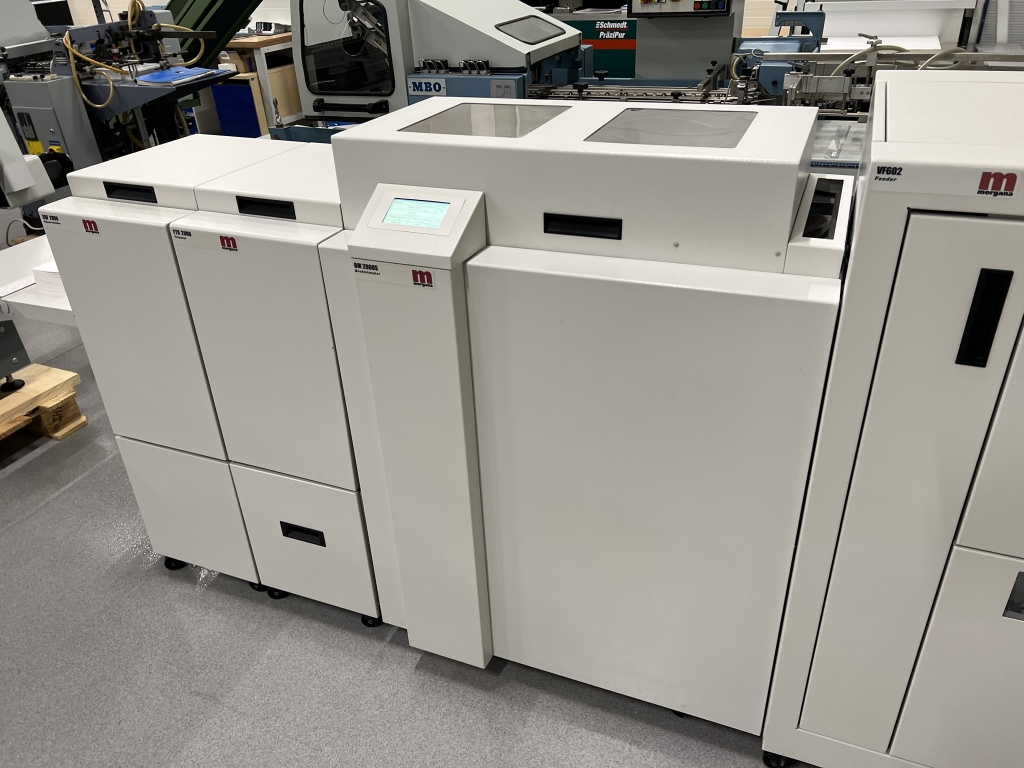

The system consists of:
– Morgana VF602 sheet feeder with two bins, featuring air-assisted feeding

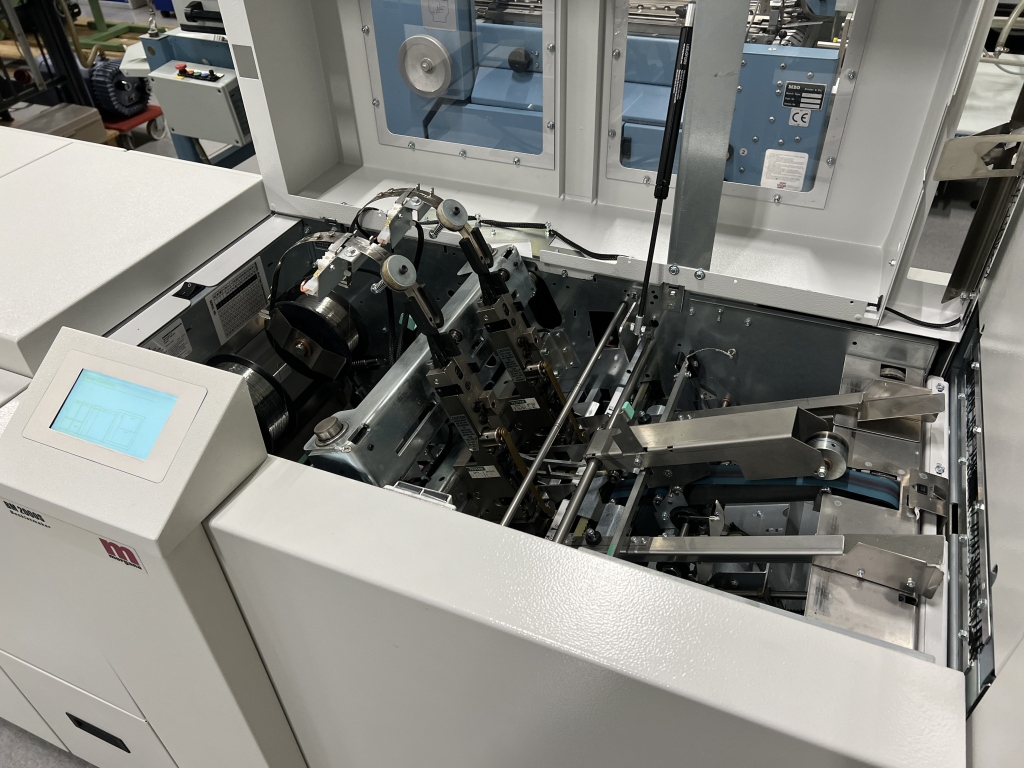

– Morgana BM 2000S stitcher-folder unit, equipped with two wire-stitching heads
– Morgana FTR 2000 trimmer

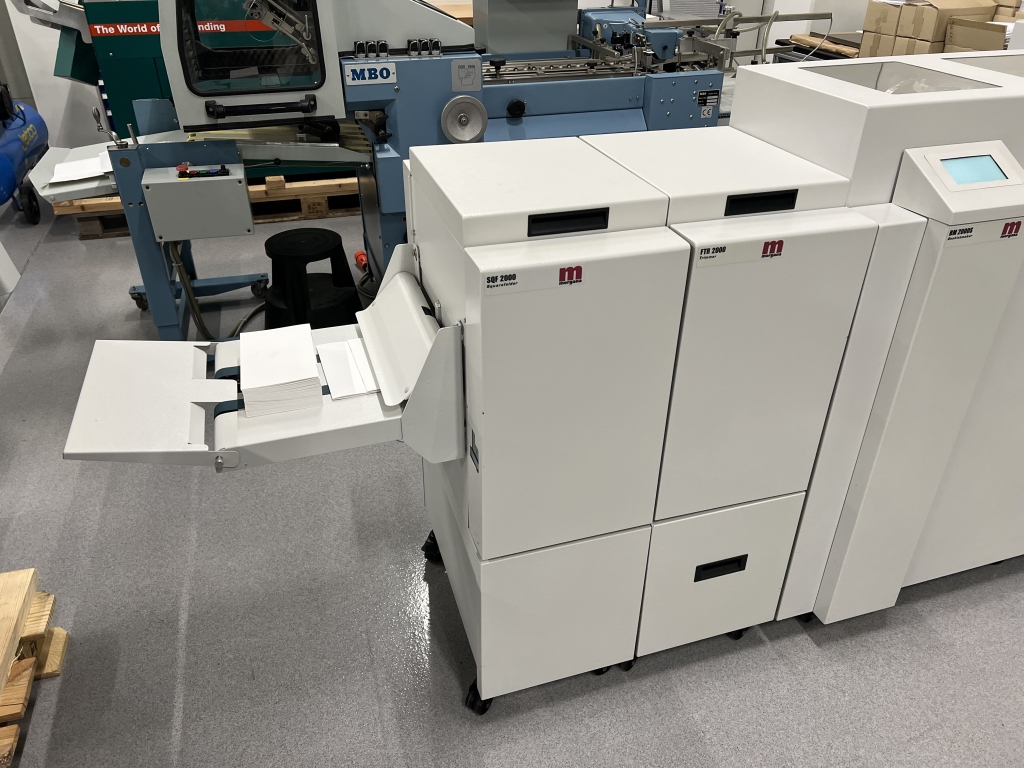

– Morgana SQF 2000 square-fold unit

BM 2000S Booklet-Making System
Capacity: 1–25 sheets (80 gsm paper)
Speed: up to 1,800 sets per hour
Sheet size: max. 320 x 470 mm / min. 120 x 210 mm
Paper weight: max. 300 gsm / min. 60 g/m²
Stitching modes: saddle stitching, side stitching, and corner stitching
Stitching heads: 2
Job storage: yes, 10 jobs
Dimensions: including base and belt delivery unit – 1135 (H) x 1520 (W) x 680 (D) mm
Weight: 161 kg

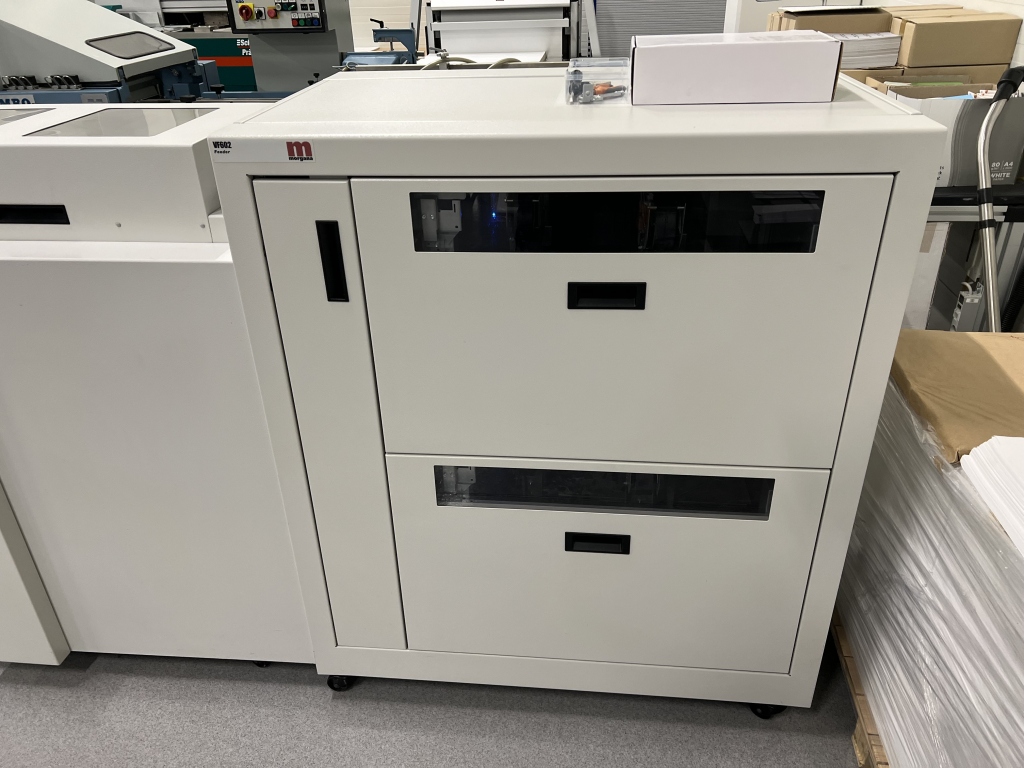

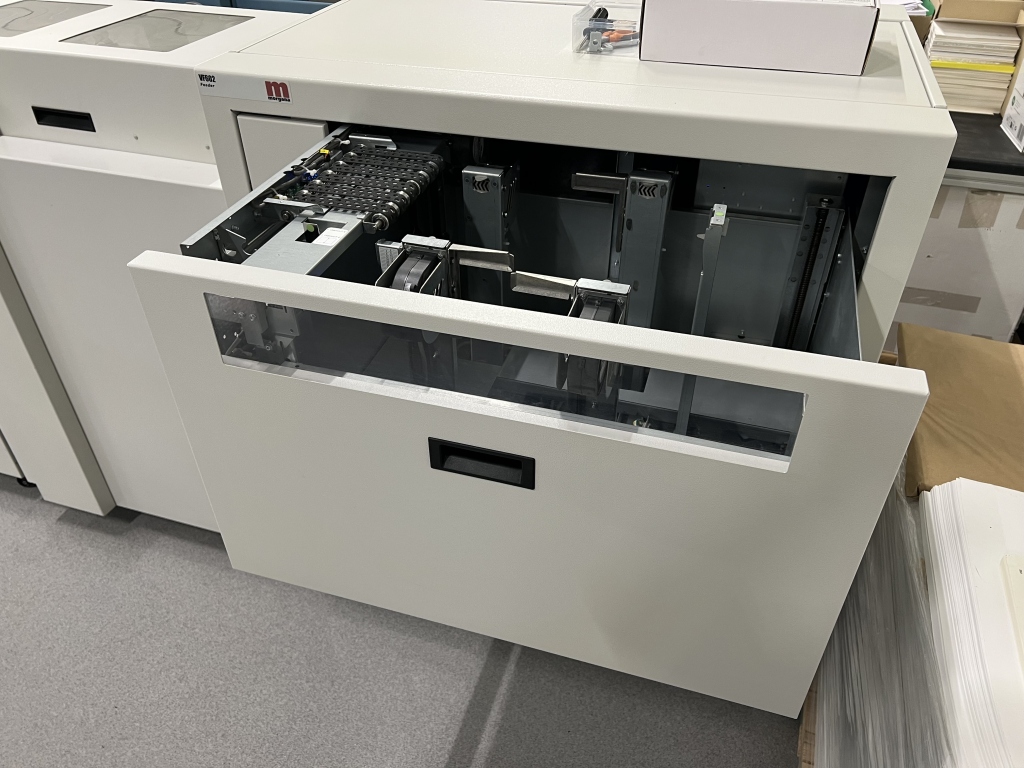

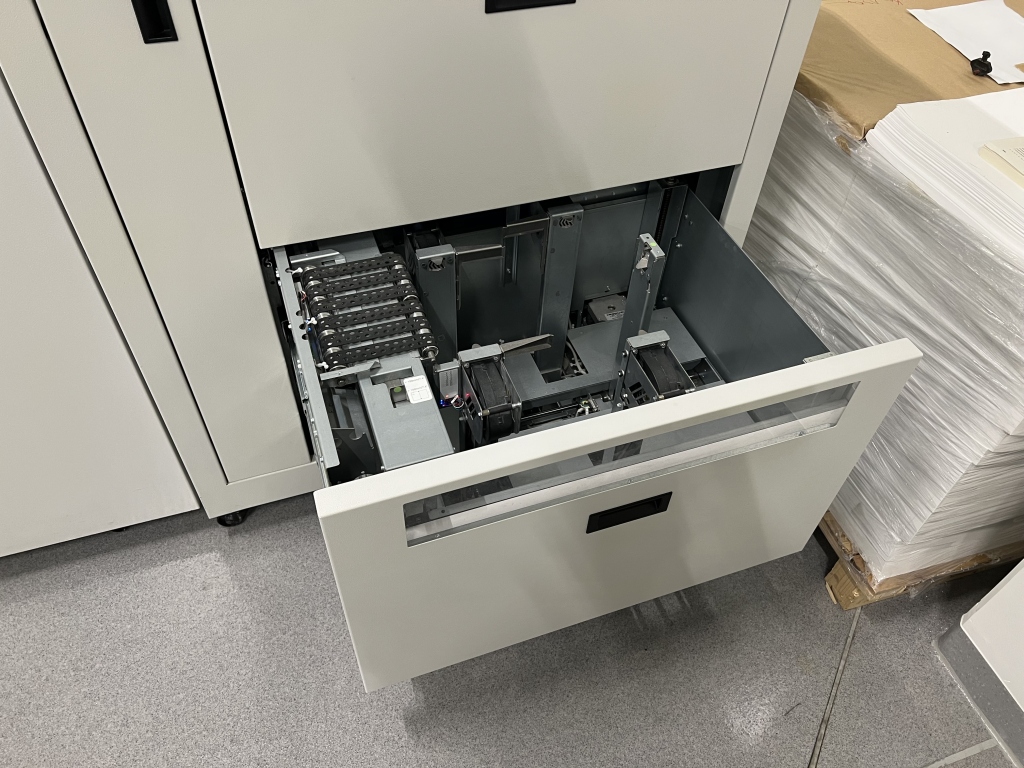

VF602 Feeder
Capacity: 2 x 270 mm / 2700 sheets (80 g/m² paper)
Sheet size (width x length): max. 350 x 660 mm
Sheet size (width x length): min. 120 x 210 mm
Paper weight: max. 300 g/m² / min. 60 g/m²
Throughput/speed: feeding speed (note: speed limited by the booklet-making unit) – up to 15,000 sheets per hour

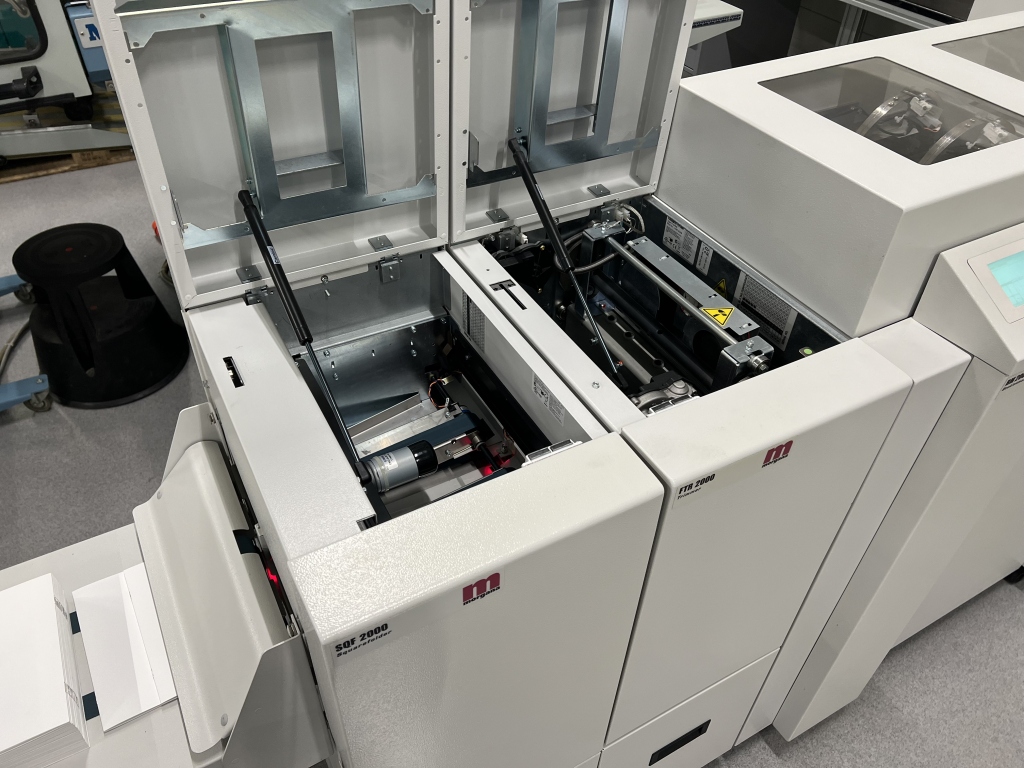

FTR 2000 Trimmer
Capacity: 30 sheets (80 g/m² paper)
Booklet length: max. after trimming 220 mm / min. after trimming 120 mm
Booklet length: max. in pass-through mode (without trimming) 235 mm / min. in pass-through mode 105 mm
Booklet width: max. 320 mm / min. 120 mm
Speed: up to 1800 sets/hour Trim length: up to 15 mm
Dimensions: including stand, 1100 (H) x 350 (W) x 595 (D) mm
Weight: 83 kg

SQF 2000 Squarefolder
Capacity: 30 sheets (80 g/m²)
Booklet (width x length): max. 320 mm x 228 mm / min. 120 mm x 105 mm
Speed: up to 1800 sets/hour
Dimensions: including stand, 1100 (H) x 350 (W) x 595 (D) mm
Weight: 60 kg

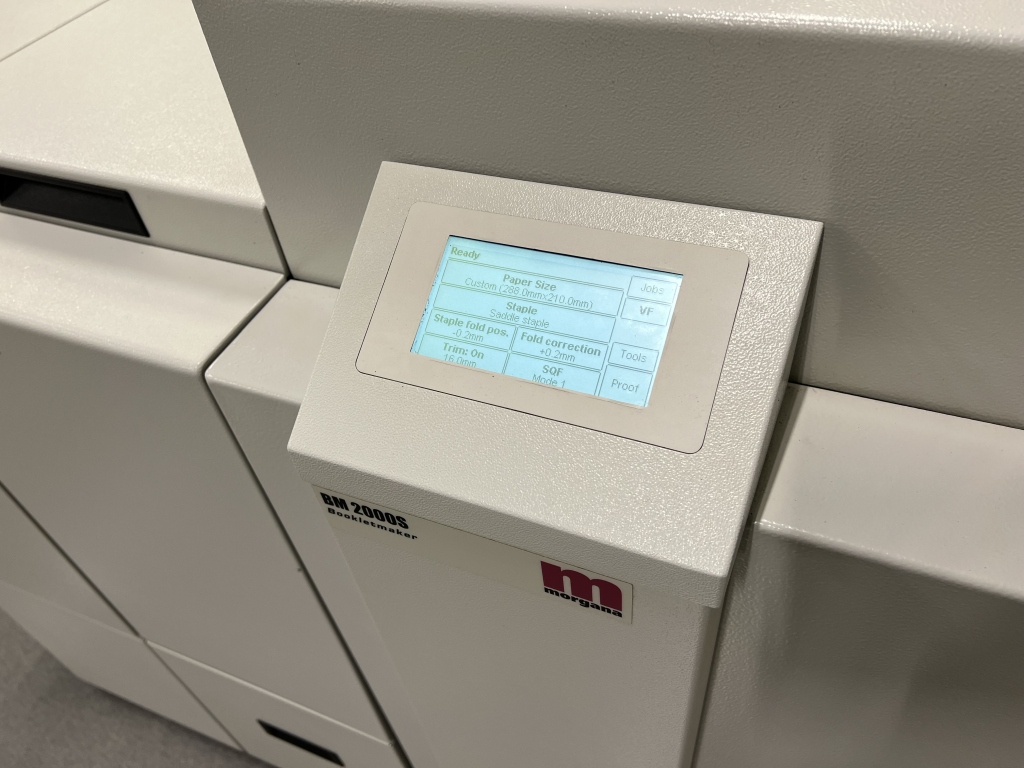

Touchscreen interface for quick format changes.
Switch the machine to a different format with a single click.
