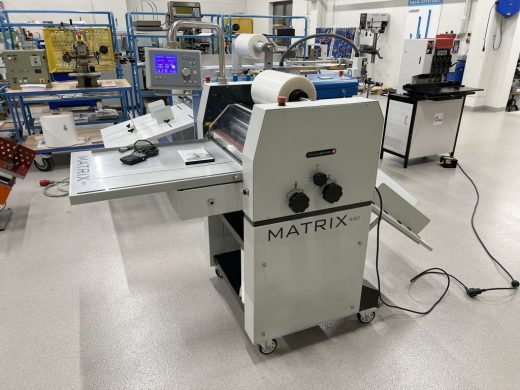

Semi-automatic laminating machine Matrix MX 530 Laminator

Semi-automatic laminating machine Matrix MX 530 Laminator

Price: 5500 EUR

Semi-automatic laminating machine Matrix MX 530 Laminator
The machine is fully functional, comes from a small digital printing house.
The set with the machine includes: foil, user manual, foot pedal.
Description:
MATRIX is a semi-automatic hot laminating machine with a built-in sheet separator.
A device designed for laminating digital or offset prints in low and medium quantities.
It can be operated by one operator at a speed of up to 10 m/min.
Additional advantages: quiet operation and small space required in the printing house.
Key features of the device:
Semi-automatic operating mode (the operator feeds the sheets onto the table, the next cycle runs automatically)
A multi-level, adjustable system of anti-curling rollers that straightens the sheets
Built-in automatic sheet separator
The device is suitable for both digital and offset printing
Quick format changes and easy replacement of foil rolls (3000m rolls)
Device duty cycle:
Using the programmer, it is possible to adjust the speed, overlap length and temperature
The operator feeds the sheets manually
The sheets are taken automatically by the rollers according to the set overlap
Ready, separated sheets are delivered to the receiving tray
Maximum foil width 500 mm
Maximum paper width 530 mm
Maximum paper length 1200 mm
Minimum paper size 200 x 300 mm
Laminating speed up to 10 meters per minute
Front table dimensions 668 x 542mm
Paper weights 115-350 g/m2
Temperature 80 – 130 °C
Warm-up time 10-15 minutes
Dimensions 2050 mm x 900 mm x 1400 mm
Power consumption 1.5-2kW
Power supply 230V, 50Hz
Weight with base 220 kg
